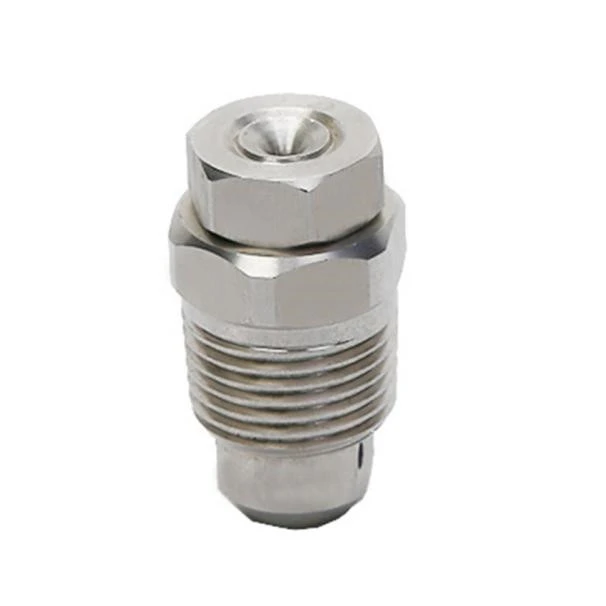

बीडी सीधी रेखा खोखले शंकु स्प्रे नलिका

इनलेट कनेक्शन

3/8 [जीजी] #39; [जीजी] #39;; 1/2 [जीजी] amp; rsquo; [जीजी] amp;rsquo;; 3/4 [जीजी] amp;rsquo; [जीजी] amp;rsquo;; 1 1/2 [जीजी] amp; rsquo; [जीजी] amp; rsquo;

स्प्रे पैटर्न

खोखला शंकु

स्प्रे कोण

119°/113°/112°/111°/110°/109°/104°/103°/102°/101°/100°/98°/97°/92°/90°/88°/86°/84°/83°/82°/79°/77°/76°/75°/74°/73°/72°/70°/69°/68°/67°/65°/64°/63°/60°

आवेदन

डिफोमिंग; सफाई; कूलंग; धुआं धोना; स्प्रे टॉवर; आर्द्रीकरण; डस्टिंग

1 (हमें लड़की)=3.785 एल; 1 (यूके लड़की)=4.546 एल

0.5बार

0.7बार

1बार

1.5बार

2बार

3बार

4बार

5बार

6बार

1.5बार

6बार

3/8

2

2.4

2.0

0.76

0.91

1.1

1.3

1.6

1.8

2.0

2.2

60°

70°

3

2.4

2.4

0.96

1.1

1.4

1.7

1.9

2.4

2.7

3.1

3.3

64°

77°

5

2.8

3.2

1.6

1.9

2.3

2.8

3.2

3.9

4.6

5.1

5.6

67°

76°

8

4.0

4.0

2.6

3.1

3.6

4.5

5.2

6.3

7.3

8.2

8.9

65°

70°

10

4.0

4.4

3.2

3.8

4.6

5.6

6.4

7.9

9.1

10.2

11.2

65°

72°

20-10

4.0

4.4

4.5

5.3

6.4

7.8

9.0

11.1

12.8

14.3

15.6

65°

67°

1/2

5

3.2

3.6

1.6

1.9

2.3

2.8

3.2

3.9

4.6

5.1

5.6

73°

79°

8

4.0

4.0

2.6

3.1

3.6

4.5

5.2

6.3

7.3

8.2

8.9

69°

73°

10

4.4

4.4

3.2

3.8

4.6

5.6

6.4

7.9

9.1

10.2

11.2

70°

74°

15

4.4

5.2

4.8

5.7

6.8

8.4

9.7

11.8

13.7

15.3

16.7

67°

70°

20

4.8

6.0

6.4

7.6

9.1

11.2

12.9

15.8

18.2

20

22

65°

69°

25

5.2

7.1

8.1

9.5

11.4

14.0

16.1

19.7

23

25

28

63°

68°

3/4

5

3.6

3.2

1.6

1.9

2.3

2.8

3.2

3.9

4.6

5.1

5.6

73°

79°

8

4.4

4.0

2.6

3.1

3.6

4.5

5.2

6.3

7.3

8.2

8.9

70°

74°

10

5.2

4.4

3.2

3.8

4.6

5.6

6.4

7.9

9.1

10.2

11.2

72°

75°

15

6.4

5.6

4.8

5.7

6.8

8.4

9.7

11.8

13.7

15.3

16.7

72°

74°

20

7.1

6.4

6.4

7.6

9.1

11.2

12.9

15.8

18.2

20

22

70°

74°

25

7.1

7.5

8.1

9.5

11.4

14.0

16.1

19.7

23

25

28

70°

74°

50-50.3

7.1

9.5

16.1

19.1

23

28

32

39

46

51

56

72°

73°

1-1/2

40

9.5

7.9

12.9

15.3

18.2

22

26

32

36

41

45

73°

74°

50

9.5

9.5

16.1

19.1

23

28

32

39

46

51

56

75°

77°

60

9.5

11.1

19.3

23

27

33

39

47

55

61

67

76°

79°

70

9.5

12.7

23

27

32

39

45

55

64

71

78

79°

83°

80

9.5

14.3

26

31

36

45

52

63

73

82

89

82°

84°

90

9.5

14.7

29

34

41

50

58

71

82

92

100

84°

84°

100

9.5

15.9

32

38

46

56

64

79

91

102

112

86°

86°

110

9.5

17.1

35

42

50

61

71

87

100

112

123

88°

88°

120

9.5

18.3

39

46

55

67

77

95

109

122

134

90°

90°

1 (हमें लड़की)=3.785 एल; 1 (यूके लड़की)=4.546 एल

3.9

0.7बार

1बार

1.5बार

2बार

3बार

4बार

5बार

6बार

1.5बार

6बार

3/8

3-2W

2.4

2.0

0.73

0.84

1.0

1.2

1.4

1.7

2.0

2.2

2.5

109°

90°

3-3W

2.4

2.8

0.96

1.1

1.4

1.7

1.9

2.4

2.7

3.1

3.4

112°

97°

3-5W

2.4

3.2

1.1

1.3

1.6

1.9

2.2

2.7

3.1

3.5

3.8

113°

103°

5-5W

2.8

3.2

1.6

1.9

2.3

2.8

3.2

3.9

4.5

5.0

5.6

112°

102°

5-10W

2.8

4.4

2.1

2.5

3.0

3.6

4.1

5.1

6.0

6.5

7.2

119°

109°

8-8W

3.9

3.9

2.6

3.1

3.6

4.4

5.2

6.3

7.4

8.3

9.0

110°

98°

8-10W

3.9

4.4

2.9

3.4

4.1

5.1

6.0

7.1

8.2

9.1

9.9

113°

101°

10-10W

3.9

4.4

3.2

3.8

4.5

5.5

6.3

7.9

9.3

10.2

11.0

111°

100°

1/2

5-3W

3.2

2.8

1.0

1.2

1.5

1.8

2.0

2.5

2.9

3.2

3.5

110°

96°

5-5W

3.2

3.2

1.6

1.9

2.3

2.8

3.2

3.9

4.5

5.0

5.6

112°

102°

8-8W

3.9

3.9

2.6

3.1

3.6

4.4

5.2

6.3

7.4

8.3

9.0

113°

103°

10-15W

4.4

5.6

3.9

4.6

5.6

6.7

7.8

9.5

11.1

12.3

13.4

112°

102°

15-15W

4.4

5.6

5.0

5.7

6.7

8.3

9.7

11.9

14.1

15.4

16.7

111°

104°

↓

↓

↓

↓

नोजल प्रकार

धागाआकार

सामग्री

प्रवाह कोड
